XL Joinery White Primed Easi-Frame System

The Easi-Frame system offers a flexible choice to help make the most of any living space. A room divider for any scenario can be formed with the numerous configurations available within the range. This system is designed to work with standard XL internal white primed doors helping to create a harmonious look throughout any home. The Easi-Frame includes a head, 2no jambs and 2no mullions. Don’t forget to check our vast range of internal doors.



General Information:

Brand	XL Joinery
Model Code	WEASIF

Door Information:

Type	Room Dividers
Colour	White
Finish	Primed
Construction	Solid Core
Glazing	N/A
Lipping	N/A
Matching Door	N/A
Matching Solid Door	N/A
Available Sizes (inch.)	Frame dimensions 2017mm x 3000mm, supplied with a width of 135mm.
Recommended Hardware	Pair of Handles per door leaf (System comes with 2x frame jambs/legs, 1x frame head, 2x central mullions)
Guarantee	1 year

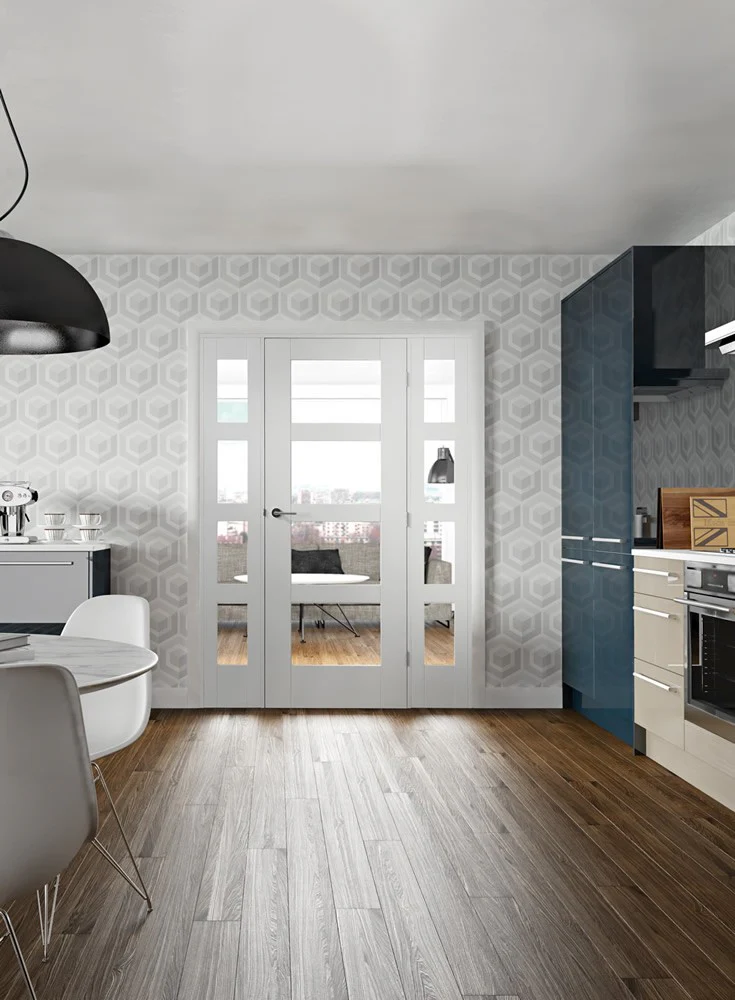

1. White Primed door frame system for pairs of doors and room dividers
2. Overall frame dimensions are 2017x3000mm. Pack includes 2x frame jambs/legs, 1x frame head, 2x central mullions
3. Frames will need to be cut down on the height as well as to suit the desired overall width, as allowances have been made for different floor coverings
4. Frame jamb/legs and frame head are 20mm thick (at the point the door/sidelight closes into them), and the central mullions are also 20mm thickness (at the point the doors/sidelights close onto them) - please make allowances for these items and gapping in your calculations.
5. Any configuration you desire, using demi/semi panels and/or any standard XL Joinery Oak doors to suit the space available
6. The following doors are available in demi panel size (306mm) and/or semi panel size (610mm) : XL Joinery Oak Pattern 10 Clear Glazed, XL Joinery Oak Shaker Clear Glazed, XL Joinery Oak Worcester Clear Glazed
